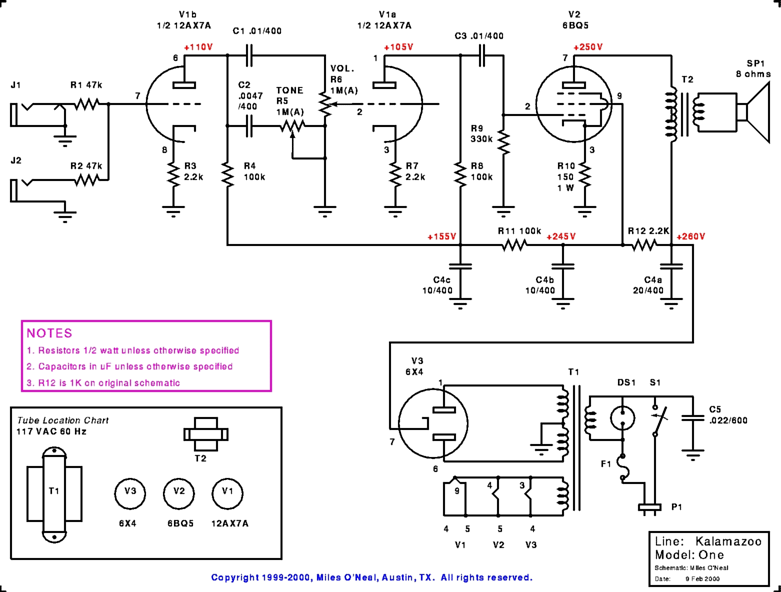

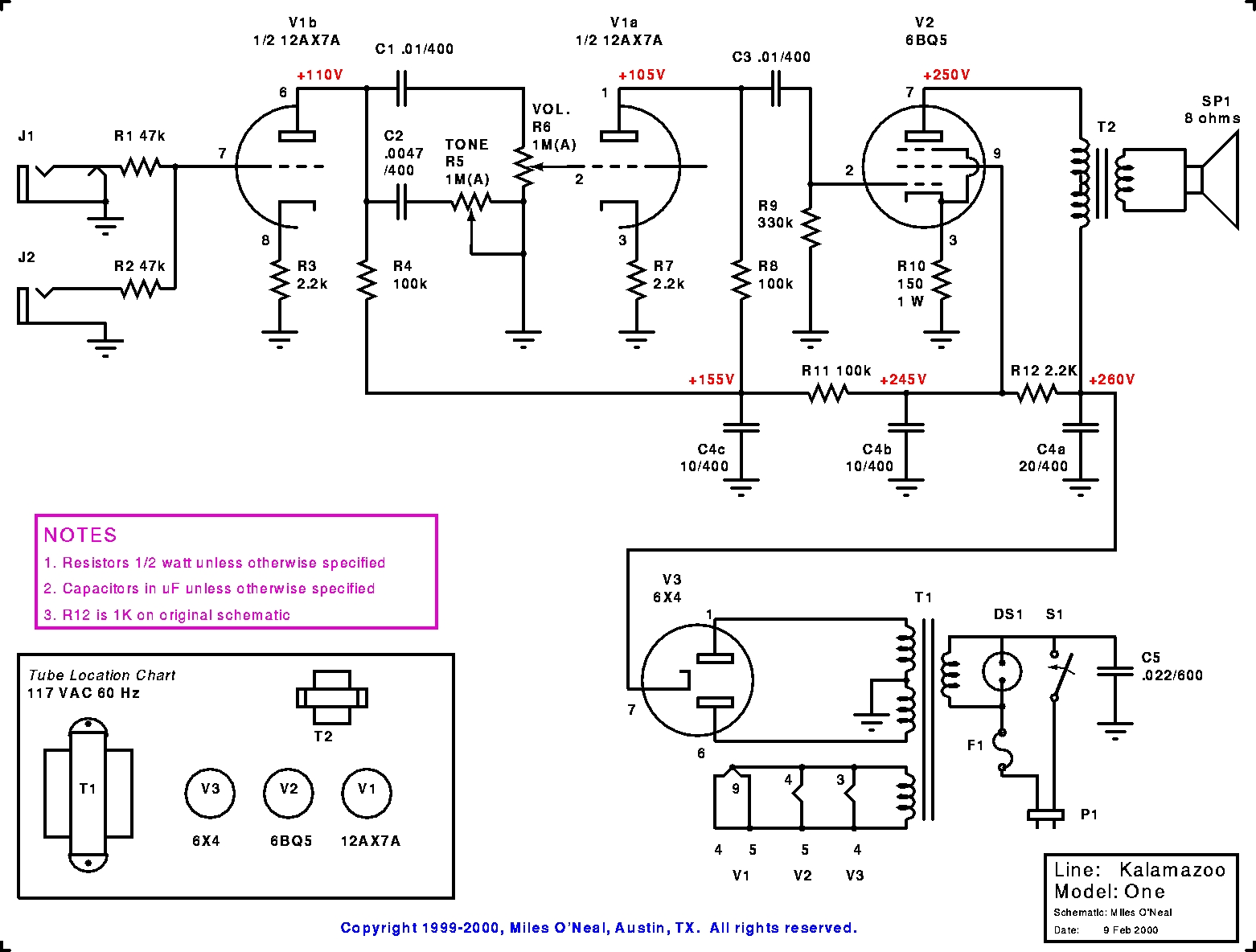

In addition to the GIF below, you can also get a larger (1584x1195) JPEG version (260 Kb) or a PostScript version (20 Kb). The PostScript file works with xcircuit .

[schematic here]

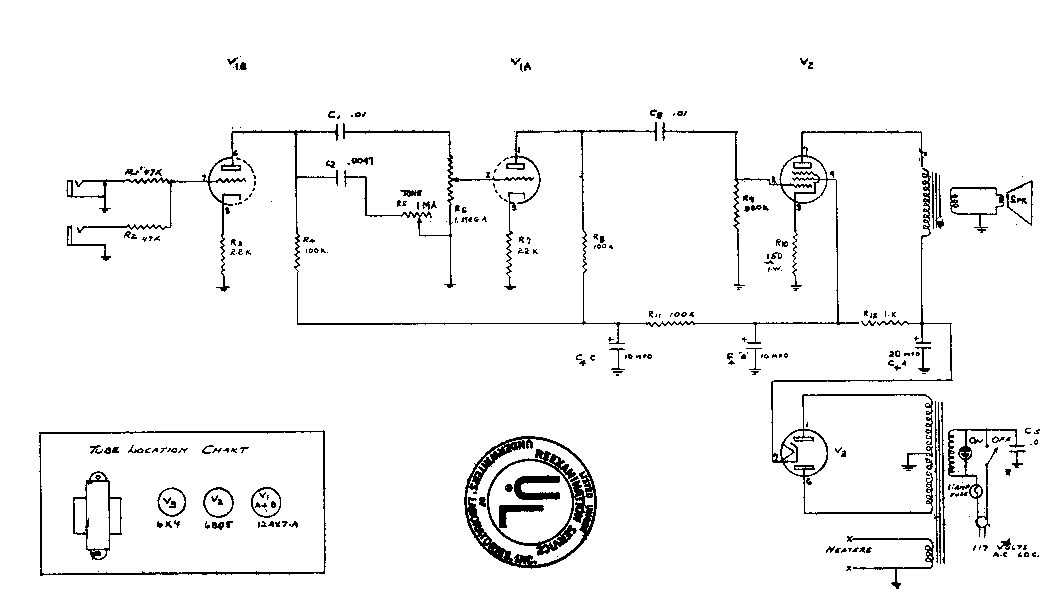

This is based on a copy of the schematic stapled into the amp. The original is hard to read and a scanned copy is worse. I redid it from scratch, following the original layout, but adding voltages, part numbers for everything (see the bill of materials), etc. You can view a scanned copy of an original schematic courtesy of Justin Belshe <JBelshe@AOL.com>.

The Kalamazoo Model 1 schematic is pasted to the inside left wall of the amp (as you look into the amp's back).

The original schematic had no copyright or patent notice. I have copyrighted my image purely to keep it available. Anyone may use this image for any non-commercial purpose, so long as they use it in its entirety, with the copyright attached, and a notice that the image is used by permission. For other uses, contact the author.
