Kalamazoo Amp Field Guide: Reverb 12

Technical Overview



Technical Overview ] [an error occurred while processing this directive] [ Schematic ] [an error occurred while processing this directive] [ Bill Of Materials ] [an error occurred while processing this directive] [ Photos ] [an error occurred while processing this directive] [ Modifications ]

For more information on the Kalamazoo line, see the Kalamazoo web pages at http://www.rru.com/~meo/Guitar/Amps/Kalamazoo/ .

NOTE: I have two of these now. They are very different than the Model One or Two amps. The two variants have very different acting tone stacks; both versions are picky about power tubes in terms of tone. The tone circuit in what I call the "A" variant is very annoying; one control acts almost like a volume control, and much of the knob range isn't very useful. Overall this is a clean amp, like a Princeton Reverb , or a Deluxe Reverb without much distortion. The reverb is OK, but not great. The tremolo works well. The power section is biased Class A.

Someone who asked to remain anonymous wrote in response to the above, "For what its worth, I hate the tone controls on my Version 2 amp. The treble control is OK, but the bass control is more of a bass on/off switch combined with a volume control. The Version 1 and 1A amp use a modified James/Baxandall stack; I've never seen either Reverb 12 tone stack used anywhere else.

I have a 1965 Gibson Explorer (Ga15-rvt) which uses the 'version 2' tone stack. (doesn't match the published Ga15-rvt schematic). I share your distaste for it, and converted it to your 'version 1'... big improvement. I actually didn't mind the bass control so much, the tapped pot gave it an interesting mid-notch somewhere in the middle. What I couldn't get along with was the treble--- piercing yet lacking sparkle."

Another reader switched to the Marshall 18W tone stack, and was much happier.

Vital Statistics

Model: Reverb 12
Year manufactured: circa 1966

Controls:
FRONT:

Back:

Tubes:

Output Transformer:

Speaker:

Physical detail:

Miscellaneous:


Technical Overview ] [an error occurred while processing this directive] [ Schematic ] [an error occurred while processing this directive] [ Bill Of Materials ] [an error occurred while processing this directive] [ Photos ] [an error occurred while processing this directive] [ Modifications ]

Last updated: 21 October 2007

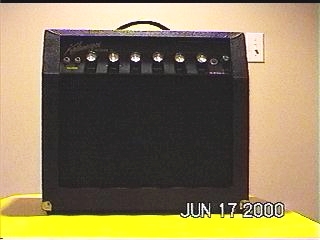

Copyright 2000, 2006 Miles O'Neal, Austin, TX. All rights reserved. Amp photo courtesy of Antonio Salvatore .
