Basic frontal shot

Logo and control closeup. Note on-off switch on treble control

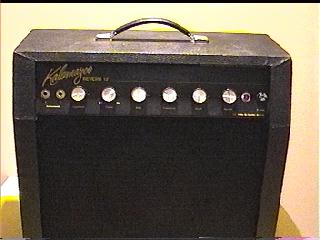

Control layout: loudness, treble/on/off, bass, frequency and depth (tremolo), and reverb (depth)

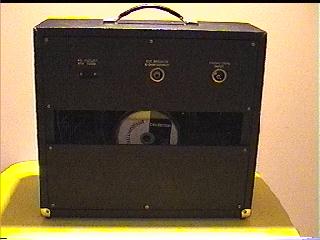

Back of amp (upper and lower panels held on with screws)

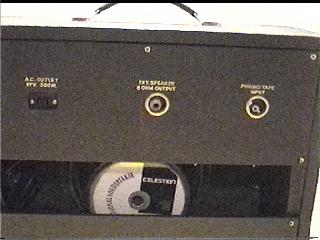

Closeup of back of amp: AC receptacle, 8 ohm ext. spkr out jack, phono/tape input jack

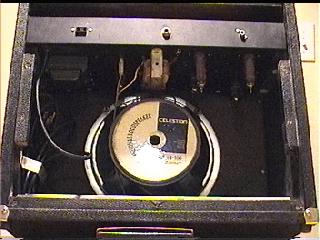

Tubes, transformers, etc.

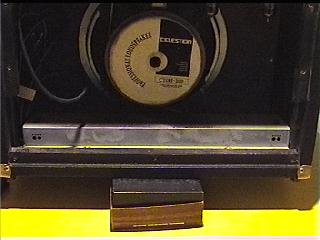

Speaker (non-original) and reverb tank

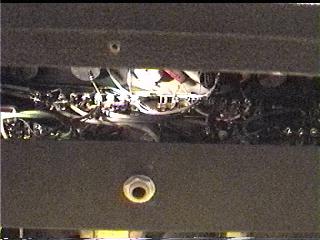

Partial view of amp electronics
All Kalamazoo tube amps were shipped with a schematic attached inside the cabinet

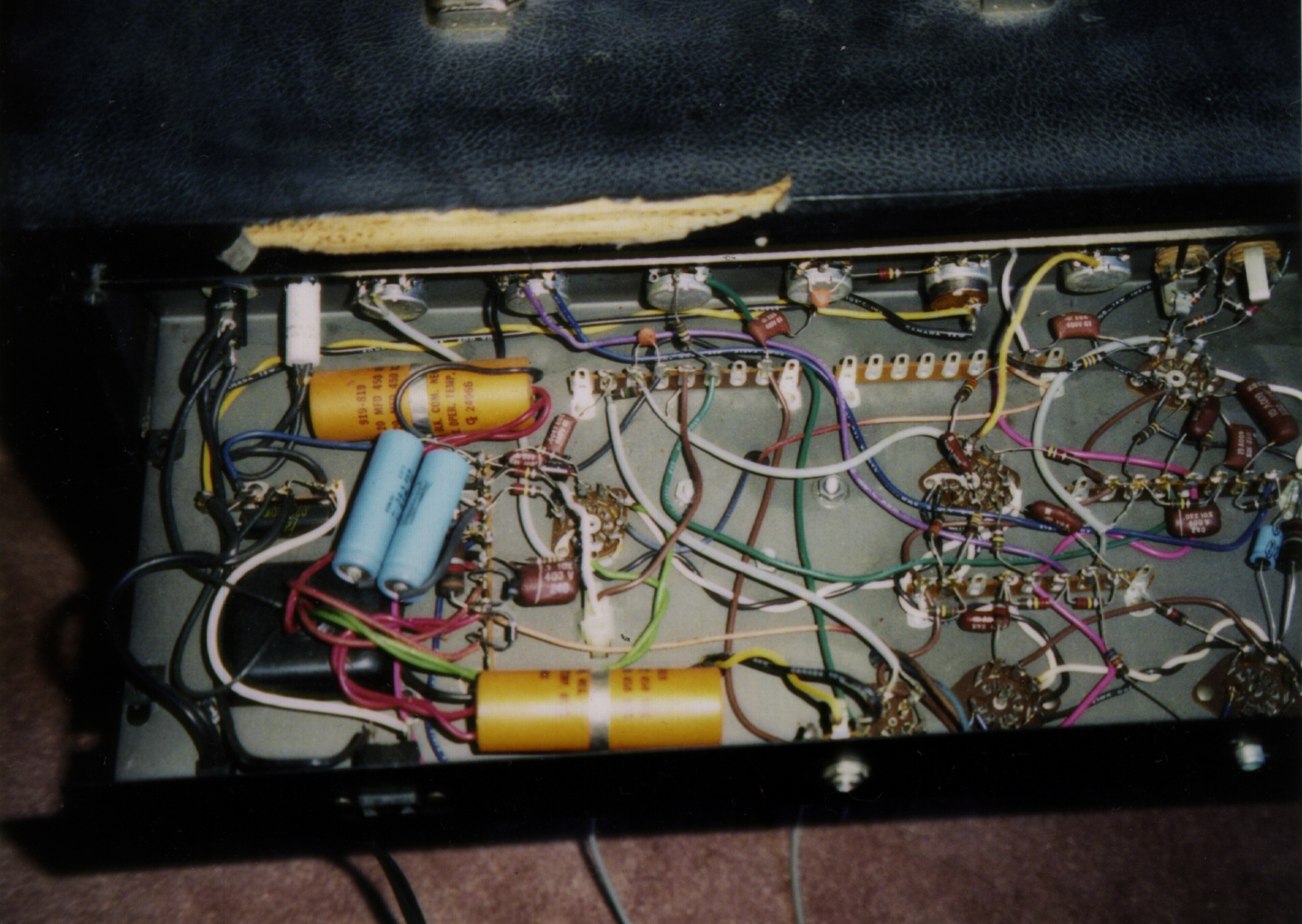

My Reverb 12, with the chassis hanging out the back. I kind of blew this shot, but you can see most of the circuit. V1 (upper right) handles first gain stage and tremolo oscillator, V2 (left of that) handles second gain stage and phase inverter, V3 (way left by power supply) handles reverb driver and recovery. Power tubes are lower right. Lots of "chocolate drop" caps and a regular snake pit of wiring. Lots of shielded wire, though. Notice the nearly unused terminal strip. They didn't exactly follow the color code, either. The white connector above the lower PS cap is for the reverb recovery cable; the send comes straight off the driver tranny under the hole to the right of V3. The small, brown, 4 pin socket just to the left of the power tube sockets is for the footswitch cable. In this photo I've already replaced the rectifier diodes with 1n1007s, and the one blue electrolytic on the far right.
