Kalamazoo Amp Field Guide: Model 1 Schematic

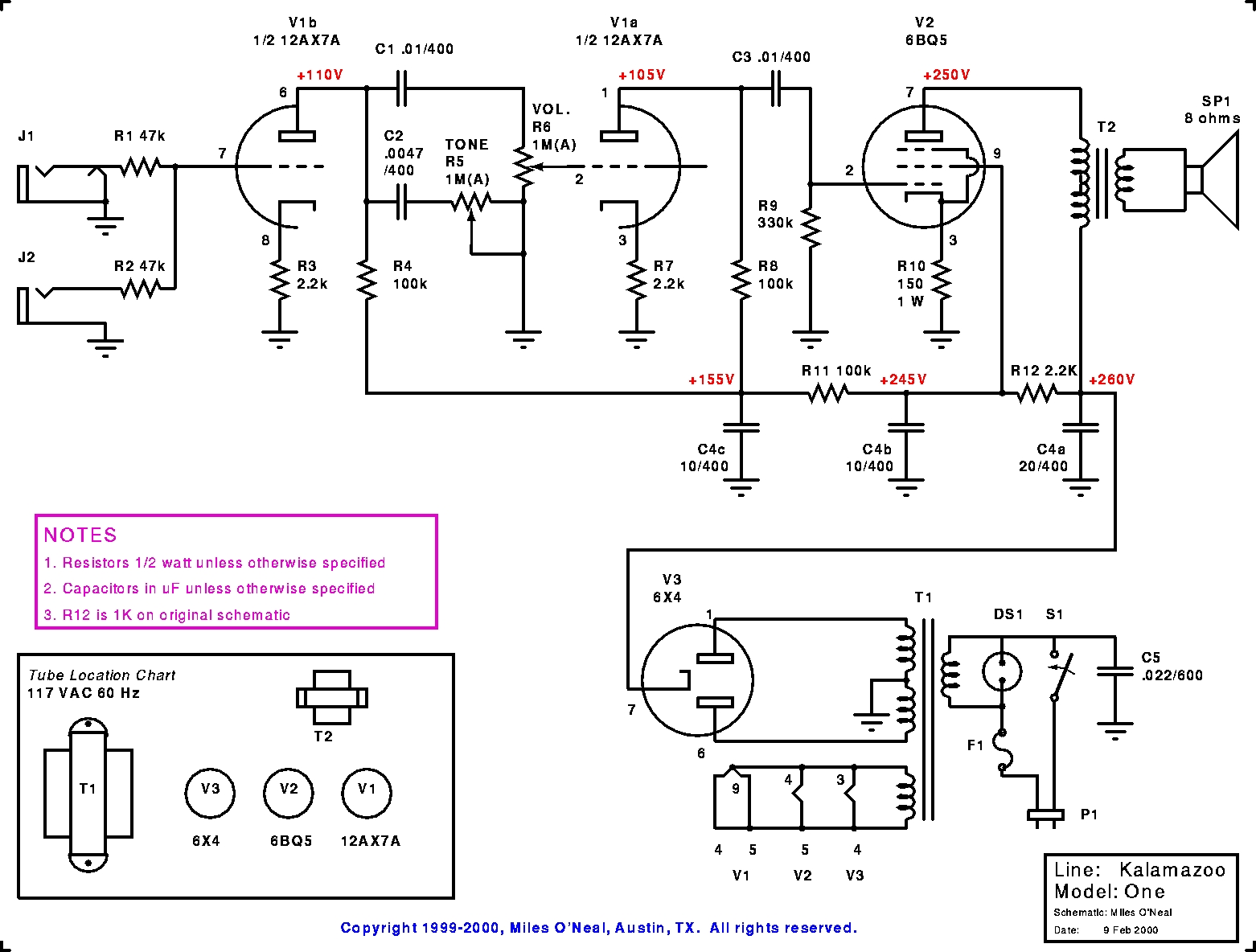

In addition to the GIF below, you can also get a larger (1584x1195) JPEG version (260 Kb) or a PostScript version (20 Kb). The PostScript file works with xcircuit .

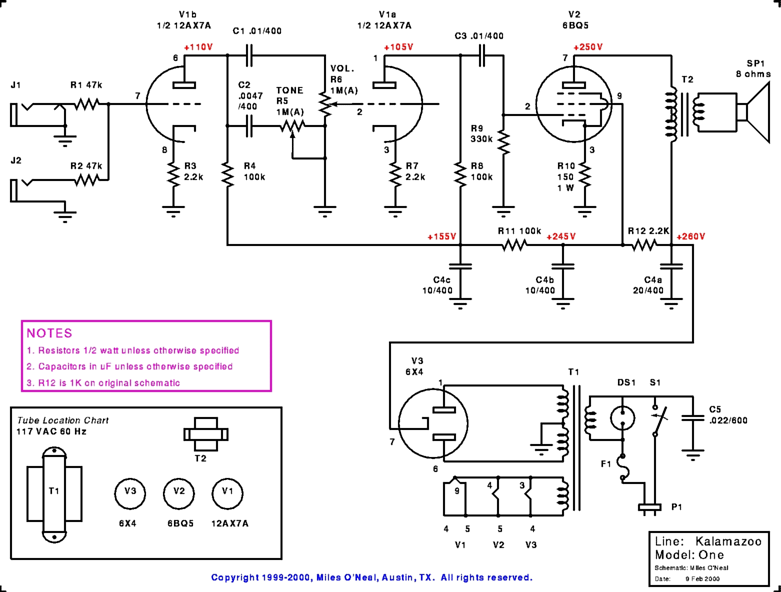

![[schematic here]](Images/schem.gif)

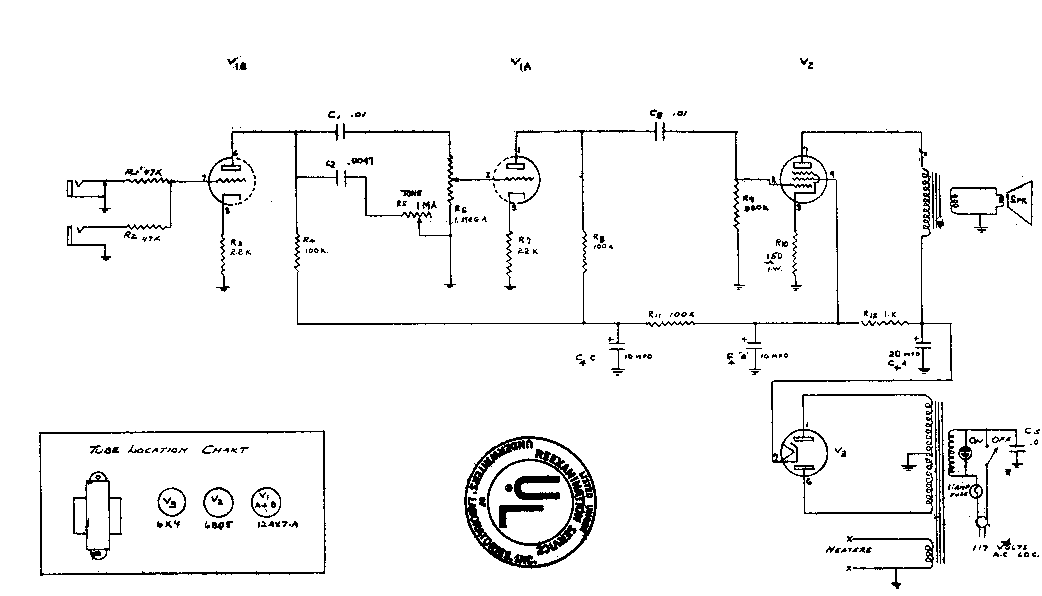

This is based on a copy of the schematic stapled into the amp. The original is hard to read and a scanned copy is worse. I redid it from scratch, following the original layout, but adding voltages, part numbers for everything (see the bill of materials), etc. You can view a scanned copy of an original schematic courtesy of Justin Belshe <JBelshe@AOL.com>.
The Kalamazoo Model 1 schematic is pasted to the inside left wall of the amp (as you look into the amp's back).
The original schematic had no copyright or patent notice.
I have copyrighted my image purely to keep it available. Anyone may
use this image for any non-commercial purpose, so long as they use it
in its entirety, with the copyright attached, and a notice that the
image is used by permission. For other uses, contact the author.
